Channels

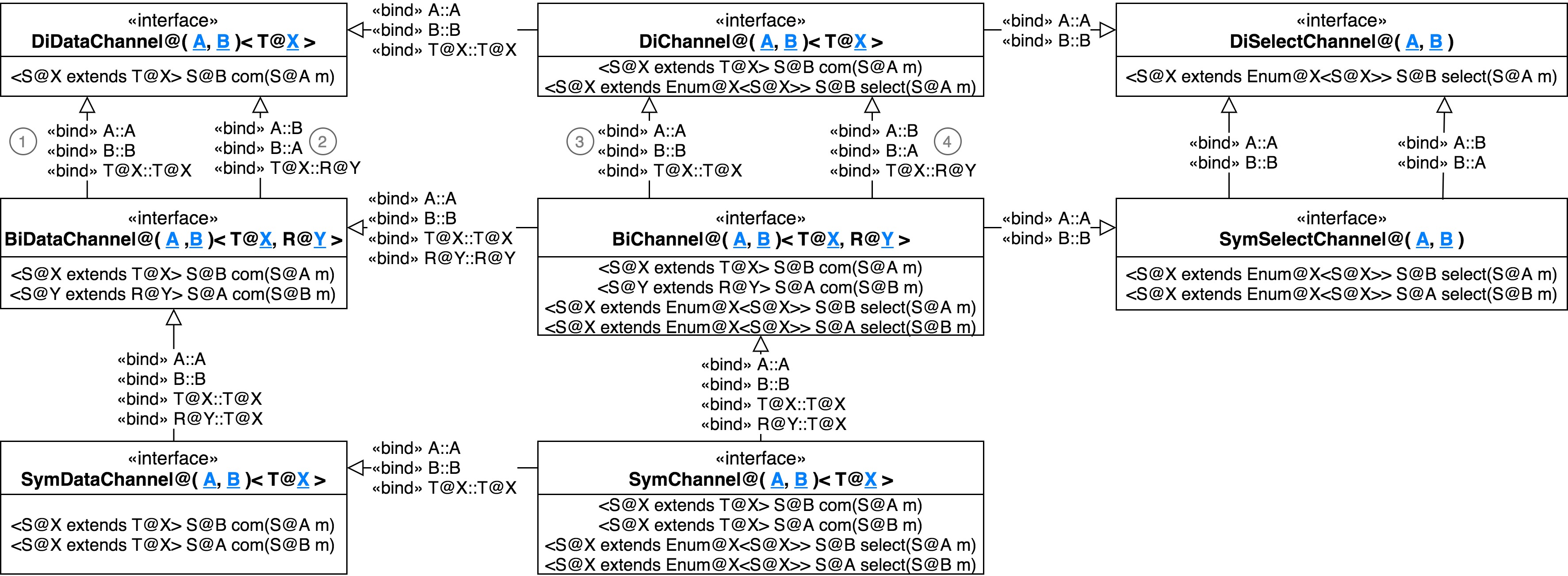

Choral types give us a new way to specify requirements on channels that prior work implicitly assumed, leading to the definition of a family of channel interfaces diagrammed below.

From the left-most column, at the top, we find DiDataChannel, representing a directed channel parameterised over T (the type of the data that can be sent). We obtain BiDataChannel, a bidirectional data channel, by extending DiDataChannel once for each direction: 1 it binds the role parameters of one extension in the same order given for the role parameters of BiDataChannel, giving us a direction from A to B and 2 it binds the role parameters of the other extension in the opposite way, giving us a direction from B to A.

The result is that BiDataChannel defines two com methods: one transmitting from A to B, the other from B to A.

The last lines in 1 and 2 in the Figure complete the picture: the first generic data type T binds data from A to B, second generic data type R binds data from B to A. The SymDataChannel in the Figure, by extending the BiDataChannel interface and binding the two generic data types T and R with its only generic data type T, defines a bidirectional data channel that transmits one type of data, regardless its direction.

The right-most vertical hierarchy in the Figure represents channels supporting selections and it follows a structure similar to that of data channels. A DiSelectChannel is a directed selection channel and a SymSelectChannel is the bidirectional version—there is no BiSelectChannel since both directions exchange the same enumerated types.

The vertical hierarchy in the middle column of the Figure is the combination of the left-most and right-most columns. Interface DiChannel is a directed channel that supports both generic data communications and selections. BiChannel is its bidirectional extension (3 and 4 in the Figure), and SymChannel is the symmetric extension of BiChannel.

Channel Implementations

The Choral runtime comes with the following default channel implementations, see the source code:

• ChoralByteChannel
• LocalChannel
• SerializerChannel
• TLSByteChannel
• TLSChannel
• WrapperByteChannel

LocalChannel example

The LocalChannel class implements SymChannel<Object>, by having two local message queues, one in each direction.

Consider this PingPong choreography using a symmetric channel.

import choral.channels.SymChannel;

class PingPong@(A, B) {
    private SymChannel@(A, B)<Object> channel;

    public PingPong(SymChannel@(A, B)<Object> channel) {
        this.channel = channel;
    }

    public void makePingPong() {
        String@A ping_a = "Ping"@A;
        String@B ping_b = channel.<String>com(ping_a);

        System@B.out.println("Received: "@B + ping_b);

        String@B pong_b = "Pong"@B;
        String@A pong_a = channel.<String>com(pong_b);

        System@A.out.println("Received: "@A + pong_a);
    }
}

In order to test this locally, we first project it into the PingPong_A and PingPong_B Java classes using the command choral epp PingPong. We can now execute it locally using the following Java code.

import choral.runtime.Media.MessageQueue;
import choral.runtime.LocalChannel;
import java.lang.Thread;

class PingPongExample {
    public static void main(String[] args) {
        MessageQueue queueAtoB = new MessageQueue();
        MessageQueue queueBtoA = new MessageQueue();

        PingPong_A pingPongA = new PingPong_A(new LocalChannel(queueAtoB, queueBtoA));
        PingPong_B pingPongB = new PingPong_B(new LocalChannel(queueBtoA, queueAtoB));

        Thread threadA = new Thread(() -> pingPongA.makePingPong());
        Thread threadB = new Thread(() -> pingPongB.makePingPong());

        threadA.start();
        threadB.start();

        threadA.join();
        threadB.join();
    }
}
